Mesh Node overview

A Mesh Node is Sectigo Edge's customer-side trust participant. It runs on a server, a Windows host or a Kubernetes cluster that you control, and it is the only component that touches your workloads, your private keys and your local systems. The Sectigo Edge console holds desired state, policy approvals and audit evidence; the node does the local work and reports back.

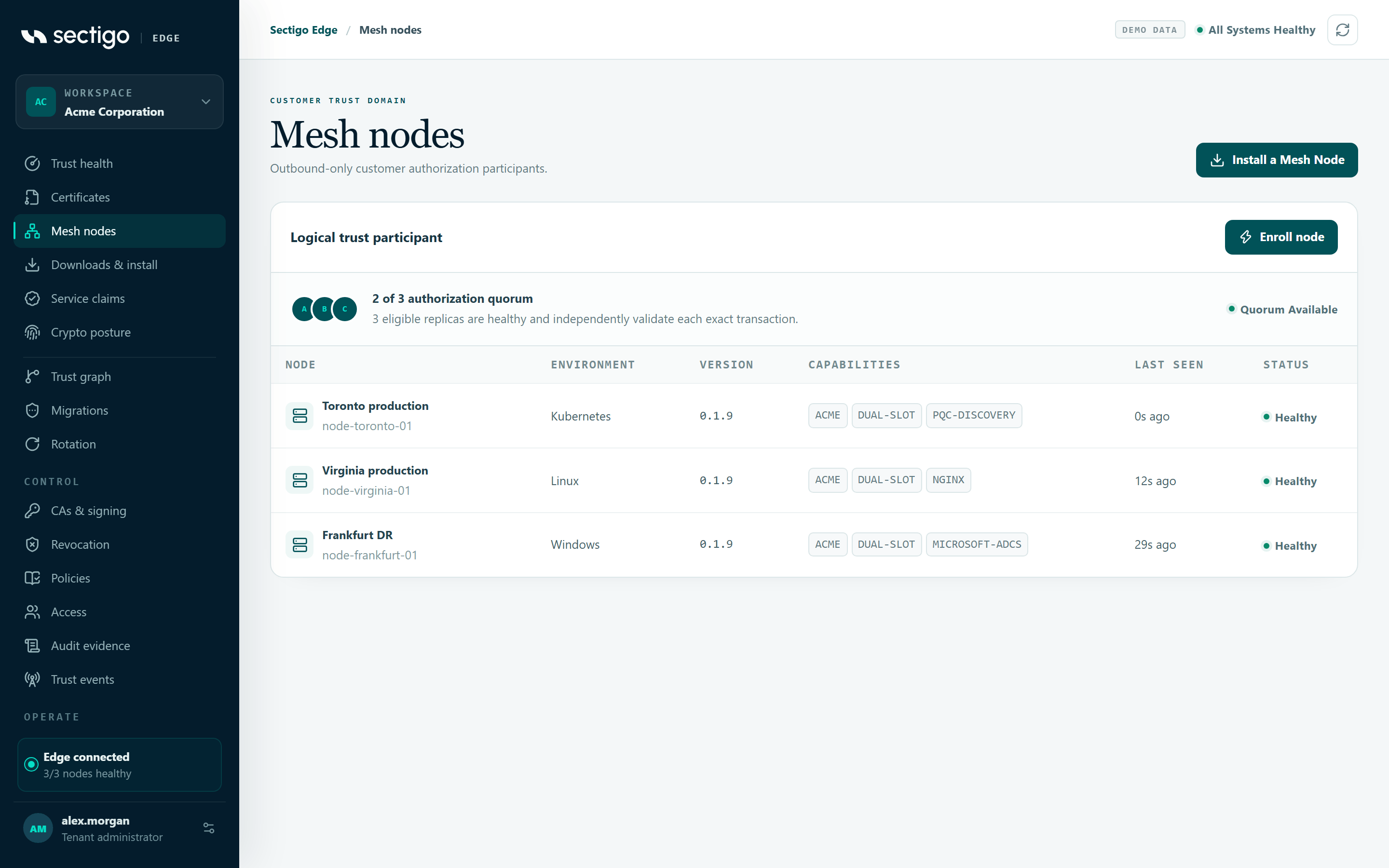

Sectigo Edge console

Enrolled nodes appear under Mesh nodes with their platform, version, capabilities and health.

What a node does

Responsibility	What it means for you
Holds a hardware-protected identity	Each node signs with a non-exportable key in a TPM 2.0 (Linux), the Windows Platform Crypto Provider (Windows) or a PKCS#11 HSM. A missing provider stops the node; it never silently falls back to a software key.
Enforces signed policy locally	The node downloads policy bundles signed by your workspace and verifies them against the pinned policy trust file before using them. An expired or unverifiable policy blocks issuance.
Approves issuance as part of a quorum	Every certificate request is evaluated by the node and by Sectigo Edge. Redundant nodes form the customer side of the approval quorum shown under Console›Mesh nodes.
Serves certificates to workloads	Built-in ACME (RFC 8555) and, when enabled, EST (RFC 7030), the Kubernetes CSR signer and the Microsoft ADCS adapter.
Deploys and rotates certificates	Adapters for NGINX, Apache HTTP Server, Java PKCS#12 keystores and HashiCorp Vault KV v2 stage a new certificate, verify that the service is serving it, and roll back automatically on failure.
Keeps a tamper-evident audit log	Every decision is appended to a hash-chained, node-signed audit log, optionally exported to your SIEM over OpenTelemetry.

How a node communicates

1. Outbound only. The node opens HTTPS connections to the Sectigo Edge API (edge_url in its configuration). It never needs an inbound port from the internet. When require_pqc_transport is true, the node refuses any connection that does not negotiate TLS 1.3 with the X25519MLKEM768 hybrid post-quantum key exchange.
2. Mutually authenticated. Outbound calls present your organization-issued client certificate (edge-client.crt) and are signed with the node's hardware key.
3. Polling for desired state. Every poll_interval_seconds the node fetches policy updates, integration desired state and pending commands (such as a manual promotion you started from Console›Rotation).
4. Reporting results. The node reports integration health, issuance results and rotation outcomes. The console only changes state after the node's signed report arrives.

Locally, the node exposes a TLS 1.3 API on listen_address (the console-generated configuration uses 127.0.0.1:9443). Workloads authenticate to it with an X.509 SPIFFE identity (an SVID) that chains to your workload trust bundle.

Local endpoint	Purpose	Client certificate
GET /healthz	Node health, policy version and digest, audit head, per-integration health	Not required
GET /metrics	Prometheus counters (requests, decisions, issuances, promotions, sync results)	Not required
GET /.well-known/sharppki	Signed node discovery document	Not required
GET /v1/integrations/status	Local adapter health without credentials	Required (workload SVID)
GET /v1/events	Signed, low-authority trust-event feed	Required (subscriber prefix)
/acme/directory and below	Built-in ACME service	Required (workload SVID)
/.well-known/est/...	EST service (when enabled)	Required (workload SVID)
/ui/	Read-only local operations UI (when enabled)	Required (operator prefix)

How certificates are delivered and rotated

For adapters that activate certificates (NGINX, Apache, Java PKCS#12 and HashiCorp Vault) the node uses dual-slot rotation:

1. The node generates the private key and CSR locally and records a durable, private intent so the transaction survives a crash or restart.
2. After both trust domains approve, the issued certificate is written to a new, immutable generation while the current certificate keeps serving.
3. The node switches the service to the new generation (reload, graceful restart or pointer move) and calls the exact HTTPS health URL for that rotation. The health check passes only if the service returns 2xx and presents the exact new leaf certificate.
4. On success the previous generation is kept for the configured rollback window. On any failure the node restores and reloads the previous generation automatically.

Promotion is either automatic after a healthy check (automatic_after_health) or manual from Console›Rotation with Verify & promote, depending on the signed rotation settings in your policy. See Zero-downtime rotation for the operational runbook.

Integration lifecycle in one paragraph

You configure an integration in Console›Integrations by enabling it, choosing target nodes, a certificate profile and a non-secret local adapter reference such as local/nginx-production. The assigned node matches that reference and profile against its own config.json, applies the desired-state revision and reports healthy or degraded with an error code. Passwords, tokens and private keys never leave the node. See Integrations for every adapter.

Where to go next

• Requirements — check your host before installing.
• Enrollment — how the one-time, signed bootstrap package works.
• Configuration reference — every config.json key.
