NGINX

The NGINX adapter lets a Linux Mesh Node rotate the certificate of an NGINX TLS server without downtime and with automatic rollback. The node keeps every certificate as an immutable generation, switches an atomic current link, validates the fully expanded NGINX configuration, reloads NGINX gracefully (new workers start before old ones retire) and only commits when NGINX is serving the exact new leaf certificate.

The node never runs a shell or a configurable hook: it only invokes the SHA-256-pinned NGINX executable with fixed arguments (-T -c <config> to test and -s reload -c <config> to reload) and re-checks the pin before every run.

Requirements

• A Linux (or Linux-container) Mesh Node on the same host or security boundary as NGINX.
• NGINX and the Mesh Node running under the same dedicated Unix identity, because the user sending the reload signal must control the NGINX master process. Do not run the node as root just to reload a host web server.
• A certificate and matching private key that NGINX is serving today (imported as generation one; the adapter never invents an initial identity).
• An HTTPS health endpoint on the service whose hostname is covered by the certificate.

Prepare the host

1. Pin the executable. Find the exact binary and compute its SHA-256 (below).
2. Create the managed directory owned by the node's user, for example /var/lib/sectigo-edge/nginx.
3. Allow the service to write it. The installed systemd unit only permits writes to /var/lib/edgepki. Add a drop-in with ReadWritePaths= for the managed directory (below).
4. Copy the current key pair to bootstrap files readable only by the node's user.
5. Include the managed snippet in the TLS server block (below) and remove any other ssl_certificate/ssl_certificate_key lines from that block.

web-01 (bash)

$ command -v nginx
/usr/sbin/nginx
$ sha256sum /usr/sbin/nginx
3f8a1c0d9e7b6a5f4e3d2c1b0a9f8e7d6c5b4a3f2e1d0c9b8a7f6e5d4c3b2a19  /usr/sbin/nginx
$ sudo install -d -o edgepki -g edgepki -m 0700 /var/lib/sectigo-edge/nginx
$ sudo systemctl edit edgepki-node
### add these lines in the editor, then save:
[Service]
ReadWritePaths=/var/lib/sectigo-edge/nginx

The digest shown is an example — always compute your own. Re-pin after every NGINX package update; a changed binary makes the adapter fail closed.

Managed include

Include the node-managed snippet in the exact server block whose certificate Sectigo Edge manages:

server {
    listen 443 ssl;
    server_name payments.internal.example;
    include /var/lib/sectigo-edge/nginx/sectigo-edge-tls.conf;

    location = /health {
        access_log off;
        return 200 "healthy";
    }
}

The node writes sectigo-edge-tls.conf itself (ssl_certificate and ssl_certificate_key pointing into current/) and replaces any local edits. Its layout:

/var/lib/sectigo-edge/nginx/
  current -> generations/slot-000042
  current.json
  sectigo-edge-tls.conf
  generations/
    slot-000041/{certificate.pem,private-key.pem}
    slot-000042/{certificate.pem,private-key.pem}

Private keys are mode 0600, generations are never modified, and the manifest is written with fsync.

Node configuration

Add to config.json (example values), then validate and restart the node (Configuration reference):

{
  "nginx_enabled": true,
  "nginx_adapter_reference": "local/nginx-production",
  "nginx_profile_id": "prod-service",
  "nginx_binary_path": "/usr/sbin/nginx",
  "nginx_binary_sha256": "<64 lowercase hexadecimal characters>",
  "nginx_configuration_file": "/etc/nginx/nginx.conf",
  "nginx_managed_directory": "/var/lib/sectigo-edge/nginx",
  "nginx_bootstrap_certificate_file": "/etc/sectigo-edge/bootstrap/server-chain.pem",
  "nginx_bootstrap_private_key_file": "/etc/sectigo-edge/bootstrap/server-key.pem",
  "nginx_reload_timeout_seconds": 10,
  "nginx_rollback_window_seconds": 3600
}

Key	Limit
All paths	Absolute, regular files (no symbolic links for the binary, configuration and bootstrap pair)
nginx_binary_sha256	64 lowercase hex characters
nginx_reload_timeout_seconds	2–60
nginx_rollback_window_seconds	60–86400

The node refuses to start if the platform, paths, identifiers, digest, time bounds, initial key pair or file types are unsafe.

Configure in the console

1. Open Console›Integrations and select Configure on the NGINX card.
2. Select Enable this integration.
3. Under Target Mesh Nodes, select the Linux node (non-Linux nodes are disabled with "NGINX requires Linux").
4. Enter the Certificate / identity profile — exactly nginx_profile_id (for example prod-service).
5. Enter the Local adapter reference — exactly nginx_adapter_reference (for example local/nginx-production).
6. Select Save desired state. The card shows Awaiting node until the node acknowledges the revision as Healthy.

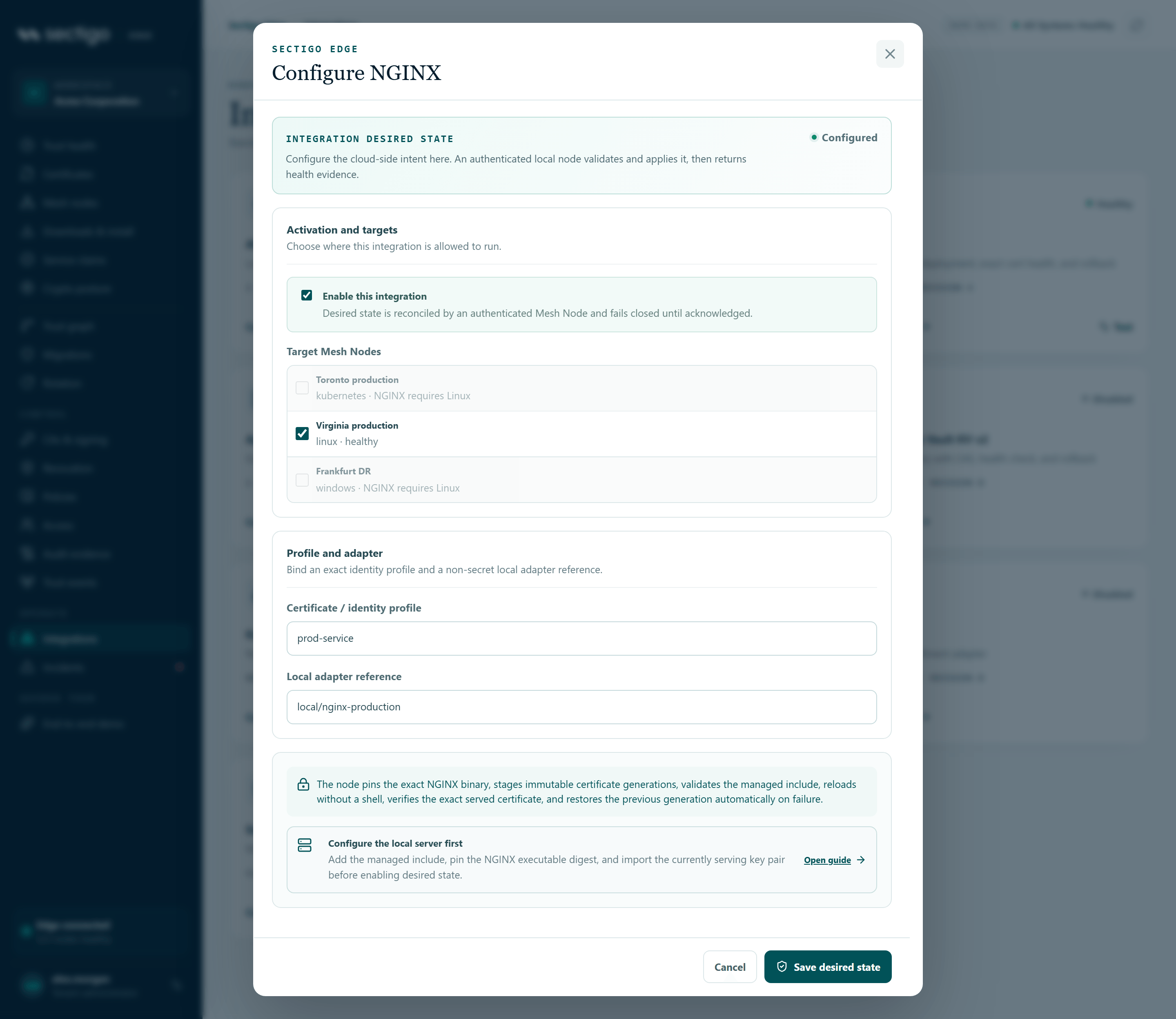

Sectigo Edge console

NGINX desired state: Linux target nodes, the exact profile and the local adapter reference.

Rotation stays denied until that node acknowledges the exact current revision as healthy.

Policy requirements

In Console›Policies, the workload profile used for NGINX must:

• include nginx in allowed deployment modes;
• contain an explicit signed rotation block with mode: dual_slot, bounded health-grace and rollback windows, and a promotion mode of automatic_after_health or manual. Without a rotation block no automatic activation is allowed.

The node binds these exact values into its durable deployment intent and re-checks them before activation.

How rotation works

1. A workload (or your automation) holding an allowed SVID asks the node to rotate:

web-01 (bash)

$ curl --cacert local-api-ca.pem --cert payments-svid.pem --key payments-svid-key.pem \
>   -H 'content-type: application/json' \
>   https://127.0.0.1:9443/v1/managed/rotate -d '{
"requester": "spiffe://acme-corp.example/prod/payments",
"profileId": "prod-service",
"sans": ["payments.internal.example"],
"validitySeconds": 86400,
"healthUrl": "https://payments.internal.example/health",
"autoPromote": true,
"integrationKind": "nginx",
"adapterReference": "local/nginx-production"
}'

2. The node generates the key and CSR, writes a private, fsync-backed intent (transaction, CSR, key, SANs, profile, adapter reference, desired-state revision) and retains the signed request in its outbox.
3. After both trust domains approve, the certificate is written to a new generation while the old one keeps serving.
4. The node switches current, runs nginx -T (the expanded configuration must contain the managed ssl_certificate lines) and nginx -s reload.
5. The node calls the health URL. It must use HTTPS, be covered by a requested SAN, resolve to permitted non-loopback addresses (pinned for the probe), stay on the same host across redirects, return 2xx and present the exact new leaf certificate.
6. Success commits the generation and keeps the previous one for nginx_rollback_window_seconds. Any failure restores the previous current link, re-tests and reloads it.

With autoPromote: false (or promotion: manual in policy) the certificate is staged only. An operator with fresh MFA then opens Console›Rotation, enters the Exact health URL and selects Verify & promote. The console only queues a command; the node revalidates policy, revision, transaction, generation, slot and certificate digest, runs the same promotion and rollback logic, and the console changes state only after the node's signed completion. See Rotation.

Recovery guarantees

• A crash at any point resumes the same transaction; no second key or certificate is created.
• An interrupted promotion is rolled back to the previous generation before the adapter can report healthy again.
• If rollback itself cannot be verified, the pending marker stays and the integration reports Degraded — it never silently declares success.
• Abandoned intents expire within a bounded window so private keys are not kept indefinitely.

Verify

web-01 (bash)

$ openssl s_client -connect payments.internal.example:443 -servername payments.internal.example </dev/null 2>/dev/null \
>   | openssl x509 -noout -serial -enddate
serial=4C1D9A7E52B03F68
notAfter=Oct  2 14:31:07 2026 GMT
$ readlink /var/lib/sectigo-edge/nginx/current
generations/slot-000043

sectigo-edge status lists the adapter with "kind": "nginx", "health": "healthy" and its manifest (generation, active, previous, rollback_until). Promotions also appear as certificate.promoted trust events and in the edgepki_node_rotations_promoted_total metric.

Troubleshooting

Code or message	Meaning	What to do
nginx_not_configured	The assigned node has no NGINX settings	Add the keys and restart the node
adapter_reference_invalid / profile_not_mapped	Console and config.json disagree	Make reference and profile identical
nginx_configuration_invalid	nginx -T failed or the managed include is not bound in the expanded configuration	Fix the configuration; make sure the include is inside the managed server block
nginx_active_pointer_invalid	current does not point at the recorded active generation	Restore the link or investigate local tampering
nginx_recovery_pending	An interrupted promotion or rollback is unresolved	Check the node log; fix the cause (binary, config, permissions) so recovery can complete
nginx_state_invalid	The manifest (current.json) cannot be read or verified	Investigate local changes to the managed directory
nginx_integration_unavailable / nginx_integration_binding_mismatch (rotate request rejected)	The integration is not healthy for this node, or the request's adapter reference/profile does not match	Fix desired state first; resend with the exact reference
Node fails to start after enabling	Unsafe path, wrong digest, mismatched bootstrap pair or non-Linux node	Run edgepki-node -validate-config for the exact reason
Reload fails with permission errors	The node's user cannot signal the NGINX master or read files nginx -T loads	Run NGINX under the node's identity and grant read access

Rollback windows, manual promotion and fleet-wide practices are covered in Zero-downtime rotation.
