CAs & signing

The CAs & signing screen is where you connect the certificate authorities that sign your certificates. You can connect Sectigo SCM or bring your own issuing CA. CA private keys never enter the Sectigo Edge application plane.

Console›CAs & signing

What it's for

• Connect a Sectigo SCM account, or import an existing issuing CA through a one-time signer import session.
• Set the SCM organization and certificate type that an SCM connector enrolls under.
• See each connector's status, key reference and revocation list publication.
• Start a replacement ceremony to rotate a connector.

What you see

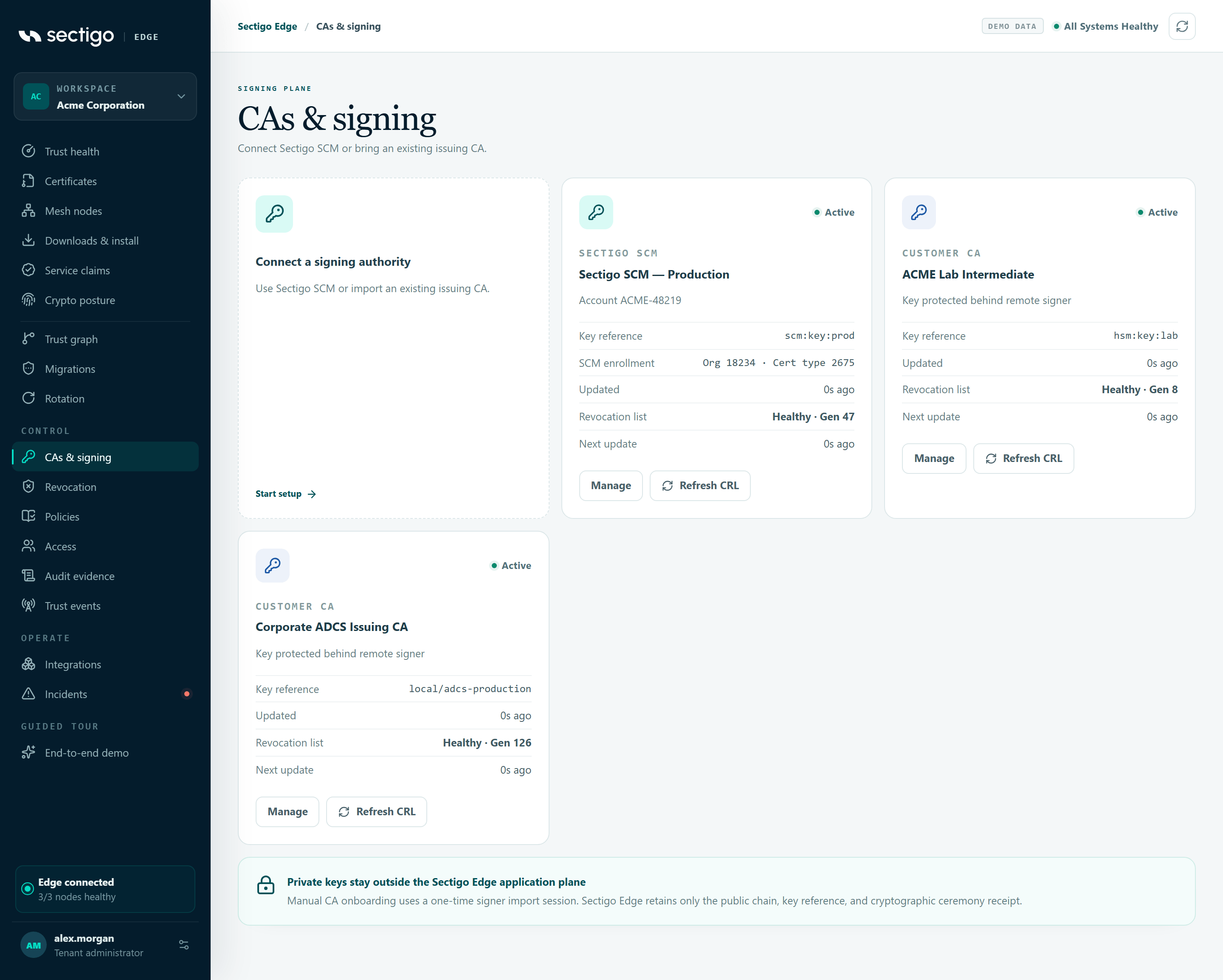

Sectigo Edge console

Connected signing authorities.

The first tile, Connect a signing authority, starts setup. Each connected authority has a card:

Field	Content
Status	The connector status: pending, active, degraded or disabled. An SCM connector missing its enrollment IDs shows incomplete.
Type	SECTIGO SCM or CUSTOMER CA.
Name	The connector name you gave it.
Account line	For SCM: Account followed by the SCM account, or SCM account not recorded. For your own CA: Key protected behind remote signer.
Key reference	The protected signer's reference to the CA key, or Pending.
SCM enrollment	SCM only. Org N · Cert type M when complete; otherwise Missing organization and certificate type IDs, Missing organization ID or Missing certificate type ID.
Updated	When the connector last changed.
Revocation list	CRL status and generation, for example healthy · gen 4, or awaiting first publication.
Next update	When the next CRL is due, or not published.

Each card has Manage and Refresh CRL. For a CA whose revocation list is published by your own local CA (status external), the button reads Local CA managed and is disabled.

Private keys stay outside the Sectigo Edge application plane

Manual CA onboarding uses a one-time signer import session. Sectigo Edge retains only the public chain, the key reference and the cryptographic ceremony receipt.

Connect Sectigo SCM

Have these ready from your SCM account:

Field	Where to find it
SCM organization ID	Shown for your organization under Organizations in SCM.
SCM certificate type ID	The ID of the SSL certificate type (profile) to enroll, from your SCM certificate settings.

Every certificate this connector enrolls is requested under this organization and certificate type. Both must be positive whole numbers.

Sectigo Edge console

The Connect a signing authority dialog.

1. Select Connect a signing authority.
2. Enter a Connector name of at least three characters, for example Production issuing CA.
3. Under Sectigo SCM enrollment IDs (SCM only), enter the SCM organization ID and SCM certificate type ID.
4. Select Sectigo SCM.
5. You are redirected to the secure connection session to authorize the SCM account and select a managed private CA. Complete it there.

When the session completes without a redirect, the console shows Secure CA connection session created.

The new connector then needs the Sectigo SCM integration enabled before it is used. See Configure the SCM integration.

Bring your own CA

1. Select Connect a signing authority.
2. Enter a Connector name of at least three characters. Leave the SCM ID fields empty; they apply only to SCM.
3. Select Bring your own CA: Open a one-time secure signer import ceremony.
4. You are redirected to the import session. Follow its instructions to import the CA into the protected signer.

Bring-your-own CA connectors are also what the Microsoft ADCS integration uses to verify certificates returned by your Windows node. See Microsoft ADCS.

Manage a connector

Sectigo Edge console

Managing an SCM connector.

Select Manage on a card. The dialog, titled with the connector name, shows Provider, Status, Key reference and, for SCM, SCM enrollment.

Fix an incomplete SCM connector

If an SCM connector is missing either ID, the dialog warns:

warning

This connector is incomplete. Its signing profiles are not published to the protected signer until both SCM IDs are set.

1. Select Manage on the card marked incomplete.
2. Enter the SCM organization ID and SCM certificate type ID.
3. Select Save SCM IDs.

The console confirms: SCM enrollment IDs saved. The signer picks them up at the next registry publication.

Configure the SCM integration

In the manage dialog for an SCM connector, select Configure SCM integration. This opens the Sectigo SCM card on Integrations with its configuration open, where you choose the Active SCM connector and enable it.

Replace (rotate) a connector

Select Start replacement. This opens Connect a signing authority again. Rotation always starts a new one-time connection ceremony; Sectigo Edge stores only the public chain and protected signer reference.

Refresh the revocation list

Refresh CRL opens the Publish a new revocation list dialog. See Revocation.

Reference: validation messages

Message	Meaning
Enter a descriptive connector name.	The name is shorter than three characters.
Enter the SCM organization and certificate type IDs before connecting Sectigo SCM.	One or both SCM IDs are missing or invalid.
Enter the numeric SCM organization ID (a positive whole number).	The organization ID is not a positive whole number.
Enter the numeric SCM certificate type ID (a positive whole number).	The certificate type ID is not a positive whole number.

Permissions

Action	Roles
View connectors	Every role
Connect, replace, or save SCM IDs	Tenant Admin. Requires MFA within the last ten minutes.
Refresh CRL	PKI Operator, Tenant Admin. Requires MFA within the last ten minutes.

See also the Sectigo SCM integration guide.

Troubleshooting

Symptom	Cause and fix
A card shows incomplete	An SCM connector is missing its organization or certificate type ID. Its profiles are not published to the signer. Use Manage to add them.
Key reference shows Pending	The connection ceremony has not completed. Finish the session, or start a replacement.
An error appears in the connect dialog	The session could not be created. The message comes from the service; a common cause is MFA older than ten minutes.
Refresh CRL reads Local CA managed	Your local CA (for example ADCS) publishes this CRL through its Windows node. You cannot refresh it from the cloud.
