Integrations

The Integrations screen is where you turn on the ways certificates reach your workloads and servers: ACME, SPIFFE, NGINX, Apache, Java keystores, HashiCorp Vault, Kubernetes CSR, Microsoft ADCS, EST and Sectigo SCM.

Console›Integrations

What it's for

You configure desired state in the console: whether an integration is enabled, which Mesh Nodes run it, which profile it uses and which local adapter configuration it points to. An authenticated Mesh Node then validates and applies that state over its outbound channel and reports health back.

Secrets never go into the console. Passwords, tokens and private keys stay on the Mesh Node, in its local credential store or private files. The console stores only a non-secret adapter reference such as local/nginx-production.

What you see

Sectigo Edge console

Integration cards.

Each card shows the integration name, a one-line description, its status, any last error, where it runs and its revision, plus Configure and (when enabled) Test.

Integration	Card description	Runs on	Guide
ACME	Local workload certificate lifecycle	Mesh Node	ACME
SPIFFE identities	mTLS workload identity binding	Mesh Node	SPIFFE / SPIRE
NGINX	Atomic TLS deployment, exact-cert health, and rollback	Linux Mesh Node	NGINX
Apache HTTP Server	Graceful TLS rotation, exact-cert health, and rollback	Linux Mesh Node	Apache
Java PKCS#12 keystore	Atomic PKCS#12 delivery, application reload, and rollback	Mesh Node	Java PKCS#12
HashiCorp Vault KV v2	KV v2 delivery with CAS, health check, and rollback	Mesh Node	HashiCorp Vault
Kubernetes CSR	Native cluster issuance adapter	Mesh Node	Kubernetes CSR
Microsoft ADCS	Compatibility and migration adapter	Windows Mesh Node	Microsoft ADCS
EST	Device enrollment adapter	Mesh Node	EST
Sectigo SCM	Managed CA and protected signing	Cloud	Sectigo SCM

Card status

Status	Meaning
Healthy	The exact current revision was applied and checked.
Awaiting node	Desired state or a test is waiting for the assigned Mesh Node to acknowledge it.
Degraded	The node rejected the configuration or could not operate the adapter. The card shows the error, for example adapter not configured.
Disabled	Not enabled. No authority or workload path is active.

Card details

The left side of the footer shows where the integration runs:

Text	Meaning
Not active	The integration is disabled.
Cloud	Sectigo SCM, which runs in the cloud rather than on a node.
No node assigned	Enabled, but no target node is selected.
n target(s)	Number of target Mesh Nodes.

Revision increases every time desired state changes or a test is requested.

Configure an integration

Sectigo Edge console

Configuring NGINX.

1. On the integration's card, select Configure. The Configure dialog opens with INTEGRATION DESIRED STATE and a status of Configured or Not configured.
2. Under Activation and targets, select Enable this integration. Desired state is reconciled by an authenticated Mesh Node and fails closed until acknowledged.
3. Under Target Mesh Nodes, select the nodes allowed to run it (not shown for Sectigo SCM).
4. Under Profile and adapter, enter the Certificate / identity profile, for example prod-service.
5. Enter or check the Local adapter reference (not shown for Sectigo SCM).
6. For Sectigo SCM, choose the Active SCM connector. For Microsoft ADCS, choose the ADCS public CA chain.
7. Read the guidance at the bottom of the dialog and complete any local preparation first.
8. Select Save desired state.

The console confirms Configuration saved. The assigned Mesh Node will reconcile it over its outbound channel. The card shows Awaiting node until the node acknowledges, then Healthy or Degraded.

To turn an integration off, clear Enable this integration and save. The console confirms Integration disabled and desired state updated.

Dialog fields

Field	Shown for	Notes
Enable this integration	All
Target Mesh Nodes	All except Sectigo SCM	NGINX and Apache require a Linux or container node; other nodes are disabled with requires Linux.
Certificate / identity profile	All	At least two characters.
Active SCM connector	Sectigo SCM	Lists your active SCM CA connectors. See CAs & signing.
Local adapter reference	All except Sectigo SCM	Fixed (read-only) for ACME and SPIFFE. Required when enabling Kubernetes CSR, Microsoft ADCS, EST, NGINX, Apache, Java keystore or HashiCorp Vault.
ADCS public CA chain	Microsoft ADCS	Lists your active bring-your-own CA connectors. The cloud uses this public chain to verify every certificate returned by the Windows node. ADCS credentials stay local.

Default adapter references

When an integration has no adapter reference yet, the dialog suggests one. It must match a configuration on the Mesh Node.

Integration	Default reference
Kubernetes CSR	local/kubernetes-incluster
Microsoft ADCS	local/adcs-production
EST	local/est-builtin
NGINX	local/nginx-production
Apache HTTP Server	local/apache-production
Java PKCS#12 keystore	local/java-production
HashiCorp Vault KV v2	local/vault-production

Local preparation shown in the dialog

Integration	Guidance heading	What to do first
NGINX	Configure the local server first	Add the managed include, pin the NGINX executable digest, and import the currently serving key pair.
Apache HTTP Server	Configure the local server first	Include the managed TLS snippet in the target virtual host, pin the httpd executable digest, and import the currently serving key pair.
Java PKCS#12 keystore	Prepare the local Java runtime	Pin JDK keytool and the reload executable, create a restricted high-entropy password file, import the serving key pair, and point the application at the managed PKCS#12 path.
HashiCorp Vault KV v2	Prepare the local Vault access	Store a narrowly scoped Vault token in a restricted file on the node, enable a KV v2 mount, and grant write access only to the configured base path.
ACME	Create a node-bound external account	Generate a distinct short-lived EAB credential and ACME account for every named primary or failover node. Never send account traffic through random load balancing.
Microsoft ADCS	CA-signed revocation distribution	The Windows node publishes and retrieves each CRL through native ADCS administration APIs.

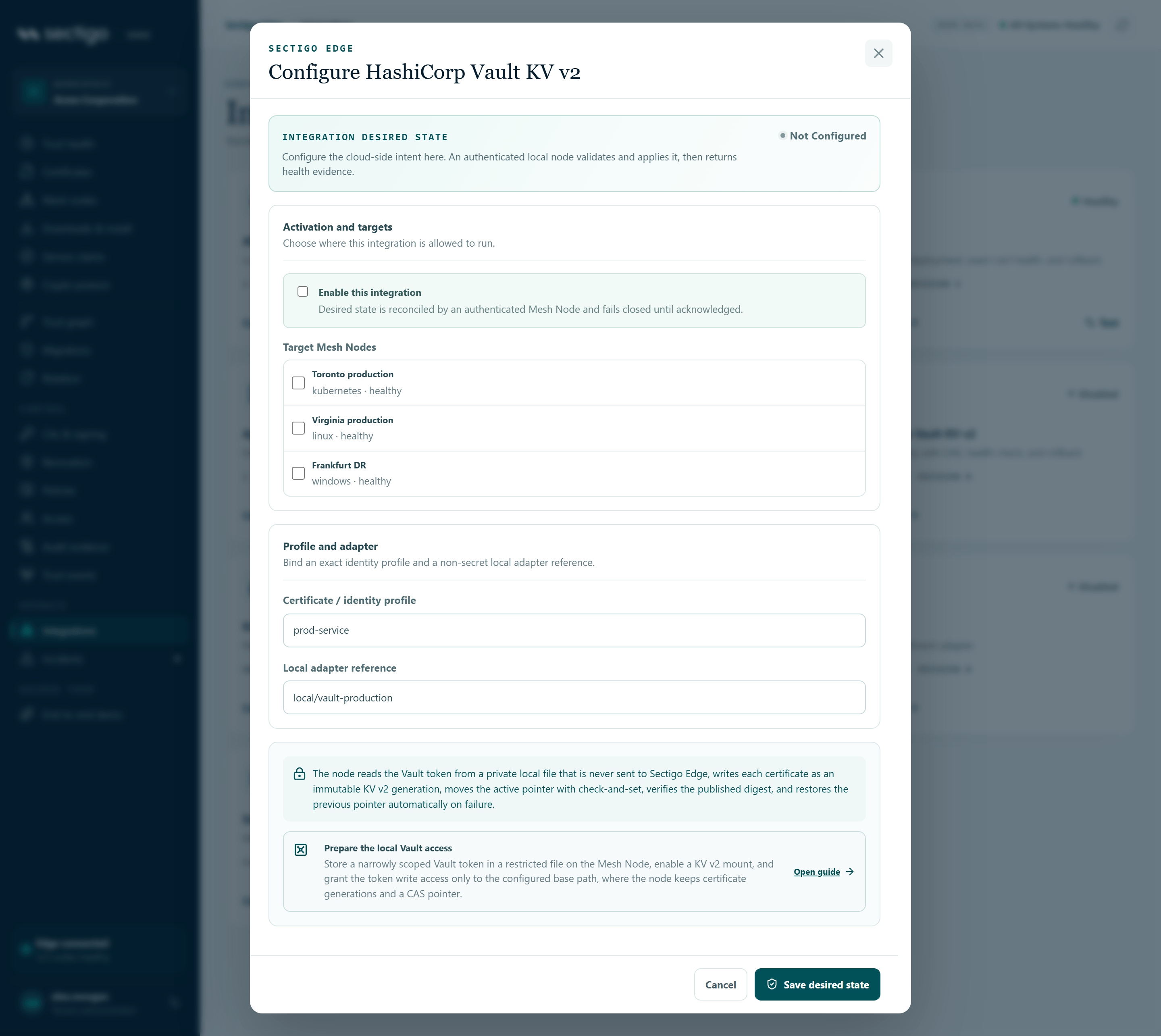

Sectigo Edge console

Configuring HashiCorp Vault KV v2. Vault connection details live on the Mesh Node, not in the console.

Test an integration

Test appears on enabled integrations. It asks the assigned Mesh Node (or, for Sectigo SCM, the cloud service) to check the integration end to end and report the result.

1. On an enabled card, select Test.
2. Read the message that appears.

Message	Meaning
Test queued. The Mesh Node will report the adapter result over its authenticated outbound channel.	Node-hosted integrations. The card shows Awaiting node and then the result.
Integration test passed.	Sectigo SCM connectivity was verified.
Test recorded, but connectivity was not verified (error code).	Sectigo SCM could not be reached or is misconfigured. The error code, if any, is shown in parentheses. Check the connector on CAs & signing.

Open configuration from a link

You can open an integration's configuration directly with the configure query parameter, for example ?view=integrations&configure=nginx. Configure SCM integration in CAs & signing uses the same mechanism.

Permissions

Action	Roles
View integrations	Every role
Configure or test node-hosted integrations	PKI Operator, Tenant Admin. Requires MFA within the last ten minutes.
Configure or test Sectigo SCM	Tenant Admin. Requires MFA within the last ten minutes.

Troubleshooting

Symptom	Cause and fix
Save desired state is greyed out	The profile is shorter than two characters; or the integration is enabled but has no target node; or (SCM) no connector is selected; or (ADCS) no CA chain is selected; or a required adapter reference is empty.
A node is greyed out with requires Linux	NGINX and Apache run only on Linux or Linux-container nodes.
Active SCM connector has no options	No SCM connector is active. Connect one on CAs & signing, and make sure its enrollment IDs are complete.
Card stays Awaiting node	The target node has not picked up the new revision. Check that it is healthy on Mesh nodes.
Card is Degraded with an error	The node could not apply the configuration. Check the adapter reference matches the node's local configuration and follow the integration guide.
An error appears in the dialog when saving	The message comes from the service. A common cause is MFA older than ten minutes.
